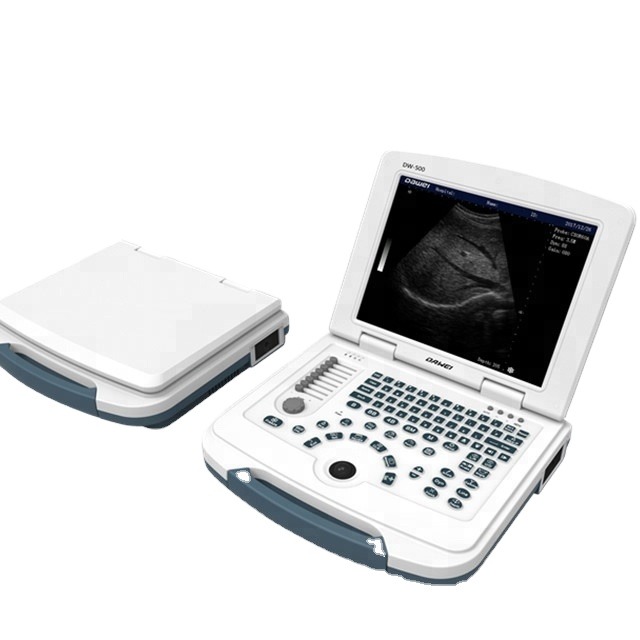

laptop ultra sound machine& ecography machine DW500
A type of high array, high definition, multi-function laptop ultrasonic diagnostic apparatus.
Light and portable, more clearer image, convenient to operate, and powerful electrical power ability supports the machine for consultation in various environment of cities, towns, outdoor.
A variety of charging to ensure the examination consultation under different environments.
12.1 inch LED shows the images with more flexible ways.
First-class digital imaging technology, more clearer image:
Full-digital beam imaging technology
Real-time dynamic receiving focus point by point
Real-time dynamic sound velocity changed
High-accuracy DSC Digital image formation technology
Intelligentized 8-segment TGC adjustment
Progressive SMT components technology to ensure machine reliability
Technical Specification for laptop ultra sound machine:
|
Scanning mode |
convex / linear / micro-convex |
|
Probe |
96 elements convex, linear, transvaginal, rectal |
|
Monitor |
12 inch high resolution LED |
|
Operation panel |
user-friendly, convenient and flexible with back-lit silica gel keyboard & track ball operation |
|
Display mode |
B, B+B, 4B, B+M, M |
|
Scanning depth |
more than 244mm |
|
Resolution |
lateral≤2mm, axial≤1mm |
|
Blind zone |
≤3mm |
|
Geometry precision |
lateral≤5%, axial≤5% |
|
Gray scale |
256 |
|
Electronical focusing |
2 focuses combination randomly |
|
Cine loop |
256 frames, realized in automatic successive playback and manual single step forward, backward playback |
|
Permanent image storage |
8 |
|
Magnification |
×0.8, ×0.8, ×0.90, ×0.95, ×1.0, ×1.05, ×1.10, ×1.20, ×1.30, ×1.40, ×1.50, ×1.60, ×1.80, ×2.0, ×2.2, ×2.5.(16 kinds) |
|
Body mark |
30 |
|
Probe interface |
2 |
|
Pseudo color |
7 |
|
Image processing |
up/ down, left / right, black / white convertion, edge enhancement, gamma correction, frame correlation, pseudo color processor ( need external color display) |
|
Measurement |
distance, perimeter, area, volume, heart rate, gestational week, FW, AFI, EDD , maternity table, heart package etc |
|
Note |
date, time, name, sex, age, doctor, hospital, comment, Chinese/ English conversion |
|
Output interface |
PAL-D, SVGA (SVGA color monitor), USB port |
|
Main power supply |
AC220V±22V , 50/60Hz |
Options:
Ultrasound image workstation
6.5MHz High frequency Trans-vaginal probe
7.5MHz High frequency Liner probe
laptop ultra sound machine details:
