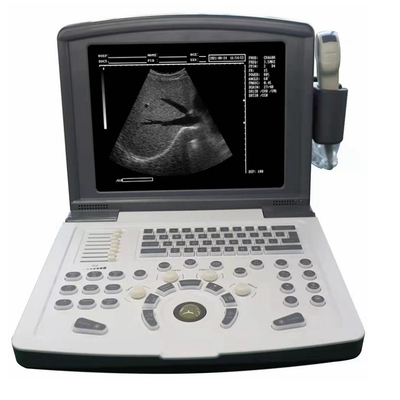

Product Name | Laptop Ultrasound Scanner Ultrasound System |
Clinical Application | Applied to clinical ultrasound examination of abdomen, obstetrics, gynecology, small organ, superficial organs, urology, cardiology and cardiovascular. |
Image Storage | 64 Frames |
Display Depth | ≧160 |
Scanning Model | Electronic Linear Array, Electronic Convex Array |
LCD Size | 9.7 Inch |
Gray Scale | 256 Levels |
Image Flip | Up/ Down, Left/ Right, Blake/ White |
Image Processing | Image Smoothing/ Sharpening, Tissue Harmonic, Histogram, DR, Gamma Correction, Pseudo-Color |
Measurement | Freehand, Ellips, Distance for Perimeter, Area Volume, Heart, G.A, EDD, BPD-FW, FL, AC, HC, CRL, AD, GS, LMP |
Character Display | Date, Clock, Name, PID, Age, Sex, Hospital Name, Doctor |
Notation | Full-screen Character Editor, Body Mark, Position Indication |
Report | Abdomen and gynecology, Cardiac, Obstetrics, Urology |
Display Mode | B, B+B, B+M, M, 4B |
Scanning Angle | Adjustable |
Cine Loop | ≥400 Frames |
Output | VGA and PAL video outputs |
Power Consumption MAX | 100VA |
Product Size | 289×304×222mm |
Carton Size | 395×300×410mm |
N.W./ G.W. | 6kg/ 7kg |
Probe Optional | ||||||||
Probe | C3-1/60R/3.5MHz Convex Probe | L3-1/7.5MHz Liner Probe | C1-6/20R/5.0MHz Micro Convex Probe | EC1-1/13R/6.5MHz Transvaginal Probe | ||||
Elements | 80 | 80 | 80 | 80 | ||||
Scan Width | R60 | L40 | R20 | R13 | ||||
Frequency | 2.0/3.0/3.5/4.0/5.5 MHz | 6.0/ 6.5/ 7.5/ 10/ 12 MHz | 4.5/5.0/5.5 MHz | 5.0/6.0/6.5/7.5/9.0 MHz | ||||
Display Depth | Adjustable | Adjustable | Adjustable | Adjustable | ||||
Scan Depth (mm) | ≧160 | ≧50 | ≧80 | ≧40 | ||||
Resolution Lateral | ≦3（depth≦80） ≦4（80＜depth≦130） | ≦2 （depth≦40） | ≦2 （depth≦40） | ≦2 （depth≦30） | ||||
Resolution Axial | ≦2（depth≦80） ≦3（80＜depth≦130） | ≦1 （depth≦40） | ≦1 （depth≦40） | ≦1 （depth ≦40） | ||||
Blind Area (mm) | ≦5 | ≦3 | ≦5 | ≦4 | ||||
Geometric Position (%) Horizontal | ≦15 | ≦10 | ≦20 | ≦10 | ||||
Geometric Position (%) Vertical | ≦10 | ≦5 | ≦10 | ≦5 | ||||
Standard configuration: | Optional configuration | ||||||
1 | One Host Machine | 1 | 6.5MHz multi-frequency trans-vaginal probe | ||||
2 | One Convex Array Probe | 2 | 7.5MHz multi-frequency linear probe | ||||
3 | One Probe Holder | 3 | Trolley | ||||
4 | One Power Adapter | 4 | Li-battery | ||||
